Multi-Coupling Plates

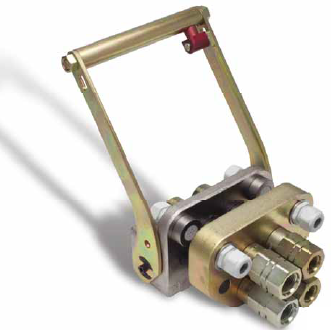

Series DP GR

  • Connect up to 25 MPa/3625 psi residual pressure
  • Auto safety lock when connected
  • Single hand operation
  • Compact design
  • Flat face couplers eliminate leakage
  • Flat face couplers reduce contamination
  • Guide mechanism eliminates cross connecting circuits

Series GRE

  • Low pressure applications
  • Connects with residual pressure: 2-3 bar
  • Safe lock prevents unwanted disconnection
  • Simple to use with a single movement applied by only one arm
  • Ease of maintenance or replacement of quick couplings

Saturn Block Series

  • Interchangeability of couplings: equipped with ISO 16028 couplings size 1/2, 5/8, and 3/4 inch. Drain line is ISO 16028 size 3/8 or 1/2 inch male
  • Couplings type: flat face
  • Connection system: push to connect
  • Disconnection system: pulling back the sleeve of the female coupling
  • Connection with residual pressure: after draining the pressure with the knob
  • Disconnection with residual pressure: after draining the pressure with the nob
  • Threads available: 3/4 JIC for pressure lines, 3/8 SAE for drain line
  • Threads on request: metric DIN, ORFS, SAE, BSP and others
  • Surface treatment: CrIII zinc plated
  • Seals: standard in NBR (Nitrile), POM
