Flat Face Couplings

Series "A" Premier And Premier International

  • In accordance with ISO 16028
  • Seals: Nitrile and Teflon anti-extrusion
  • Nipple: hardened steel reduces brinnelling
  • 12 to 20 balls to increase the male bearing points & decrease the brinelling effect
  • Modular structure for multiple port option
  • Lock system stops unwanted disconnect
  • Exceeds impulse test of ISOA-7241 test

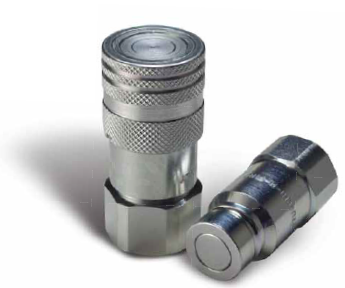

Series FIRG

  • In accordance with ISO 16028
  • Nitrile seal with specially shaped anti extrusion rings in Teflon
  • FIRG designed integrated sealing mechanism greatly reduces premature wear by movement between coupler and nipple parts caused by impulse pressure and by the weight of the flexible pipes when the coupling is in horizontal position

Series APM - Connect Under Pressure

  • Male coupling APM series is the Stucchi solution to the problem of the connection in the presence of high internal residual pressure
  • Connect up to 30 MPa/4350 psi residual pressure
  • Patented double internal security valve system in the male part
  • Zinc plated hardened steel
  • Seals: Nitrile/Teflon standard
  • NPT-SAE standard ports, others per request
  • Connect with ISO 16028 coupler

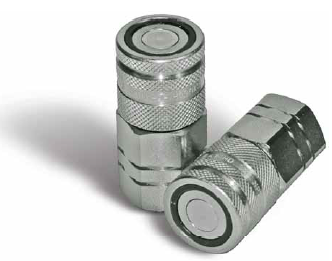

Series A-HD - Connect Under Pressure

  • Female coupling A-HD series is the Stucchi solution to the problem of the connection in the presence of high internal residual pressure
  • Connect up to 1595 psi residual pressure
  • Visual ID: black ring on coupler face
  • Zinc plated hardened steel
  • Seals: Nitrile/Teflon standard
  • NPT-SAE standard ports, others per request
  • Connect with ISO 16028 coupler

Flat Face Push Pull

  • The Push Pull coupler is built on the “A” Premier platform
  • Allowing breakaway capabilities when the coupler is unintentionally left coupled
  • Mounted in a clamp fixture designed to be fixed-mounted to the stucture
  • Great for mobile applications with the use of the APM series nipple

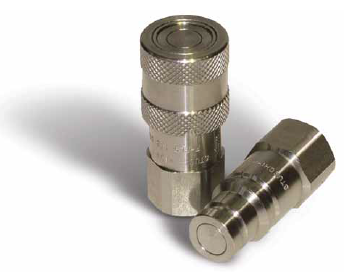

Flat Face 316 Stainless Steel

  • Manufactured in stainless steel AISI 316
  • Standard seals are Viton/Flourocarbon with the option of other materials
  • No air inclusion during connection circuit
  • Flat face can easily be cleaned limiting contamination into system
  • Non-spill design eliminates leaks
  • Minimal pressure drop design

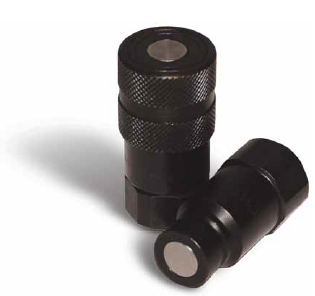

Series FIRG Q

  • Material: high resistance carbon steel treated with QPQ
  • Valve parts in stainless steel
  • Springs in AISI 302 SS
  • Locking balls in AISI 420
  • Seals: Nitrile, EPDM, Viton, etc.
  • In accordance with ISO 16028

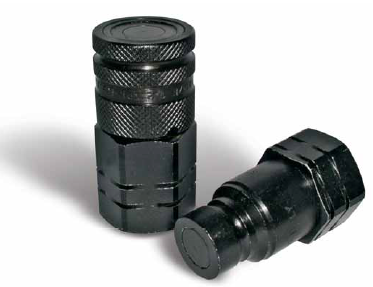

Series "A" With Z Plating

  • Seals: Nitrile & Teflon anti-extrusion
  • Nipple: hardened steel reduces brinnelling
  • 12 to 20 balls to increase the male bearing points & decrease the brinelling effect
  • Modular structure for multiple port option
  • Lock system stops unwanted disconnect
  • Exceeds Impulse test of ISOA-7241 test

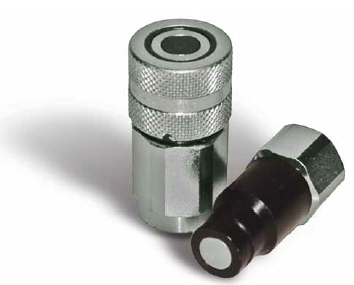

Series A-HP

  • 10,000 psi working pressure
  • Auto lock sleeve to eliminate accidental disconnection
  • Does not interchange with lower pressure couplings to avoid misuse
  • Color coded identification option available upon request
  • Locking sleeve eliminates accidental disconnection
  • Easy to clean, eliminate contamination of hydraulic circuit

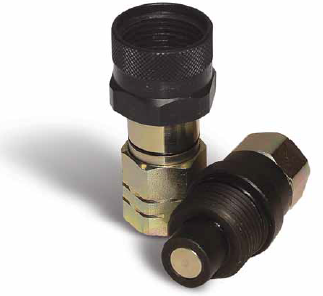

Series VEP

  • High working pressures: 40-60 MPa/5800-8700 psi range based on size
  • Thread coupling system eliminates brinelling, premature leakage
  • Connect/disconnect under residual pressure up to 25 MPa/3625 psi
  • Valve limits fluid movement during connection avoiding damage to other elements of circuit
  • Low connection force required

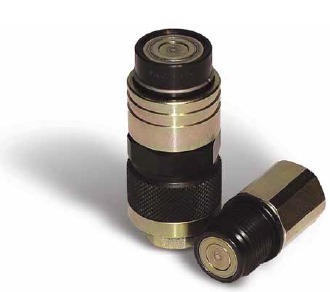

Series VP

  • Connect/disconnect with residual pressure up to 25 MPa/3625 psi
  • Thread coupling system eliminates brinelling, premature leakage
  • High working pressures: up to 40-60 MPa/5800-8700 psi
  • Valve limits fluid movement during connection avoiding damage to other elements of circuit
  • Low connection force required
  • Safety auto-lock feature upon connecting
