Filter, Regulator, Lubricator Combinations

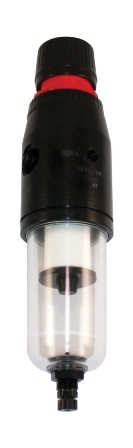

Filter / Regulator Miniature Series

  • Filter and regulator consolidated in one assembly
  • Reduces footprint of air prep assembly
  • Polycarbonate or aluminum bonnets available
  • Polycarbonate or aluminum bowls available
  • Manual or impulse drains available
  • Preset and tamperproof options
  • Gauges available
  • Particulate elements in 20, 10 and 5 micron
  • Coalescing elements in 0.3 and 0.01 micron

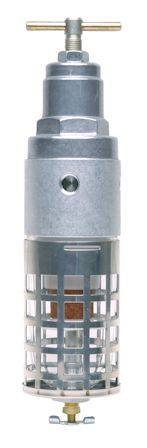

Filter / Regulators Standard Series

  • Filter and regulator consolidated into one assembly
  • Reduces footprint of air prep assembly
  • Tie-rod construction for maximum stability
  • Polycarbonate or aluminum bowls available
  • Manual, float or impulse drains
  • Preset and tamperproof available
  • Gauges optional
  • C01-1000 Series has a greater bowl capacity to accommodate a larger sump area
  • C01-2000 Series has a compact design for applications where space is at a premium
  • Particulate elements in 20, 10 and 5 micron
  • Coalescing elements in 0.3 and 0.01 micron

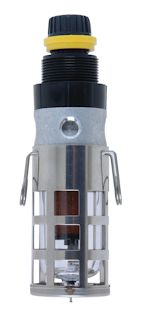

Filter / Regulator Standard Series

  • Convenient push to lock knob design
  • Acetal bonnet and knob
  • Mounting nut comes standard
  • Diaphragm design for minimal hysteresis and greater responsiveness
  • Black anodizing standard with other colors available
  • Machined aluminum body
  • Manual, float or impulse drains available
  • Aluminum or polycarbonate bowls available
  • Can be ordered with gauge

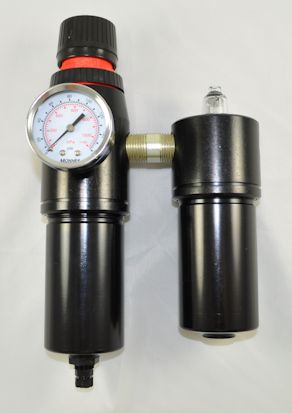

Filter/ Regulator / Lubricator: B3-1000

  • Filter/ regulator and lubricator consolidated into one assembly
  • Gauge included
  • Push to lock bonnet assembly
  • Black anodized finish standard, with many other colors available
  • Polycarbonate or aluminum bowls available
  • Reduces footprint or air prep assembly
  • Manual, float or impulse drains available
  • Threaded bowls for ease of maintenance

Filter / Regulator / Lubricator: 213-5000

  • Filter/ regulator and lubricator consolidated into one assembly
  • Gauge included
  • Push to lock bonnet assembly
  • Black anodized finish standard, with many other colors available
  • Polycarbonate or aluminum bowls available
  • Reduces footprint or air prep assembly
  • Manual, float or impulse drains available
  • Threaded bowls for ease of maintenance

Filter / Regulator / Lubricator: 213-4000

  • Filter, regulator and lubricator consolidated into one assembly
  • Polycarbonate or aluminum bowls available
  • Manual, float or impulse drains available
  • Gauge included
