Pressure Sensors

Pressure sensors monitor system pressure in hydraulic, pneumatic and process applications. Compact housings feature integrated displays with pushbutton setup.

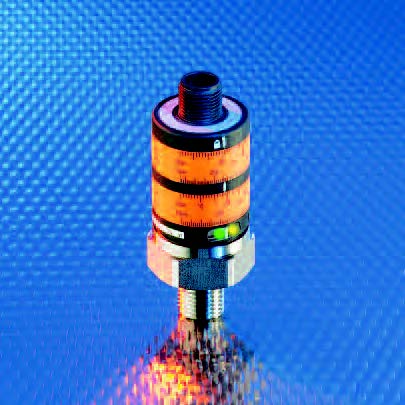

PK Pressure Switches

  • For hydraulic and pneumatic applications
  • Pressure ranges from 0 up to 5800 PSI
  • Simple set-up with mechanical adjustment dials that rotate to quickly establish set-point and reset point
  • 316 stainless steel process connection and strain gauge technology provide higher reliability than mechanical pressure switches
  • The switch’s high accuracy and long-term stability insure the set-point does not drift

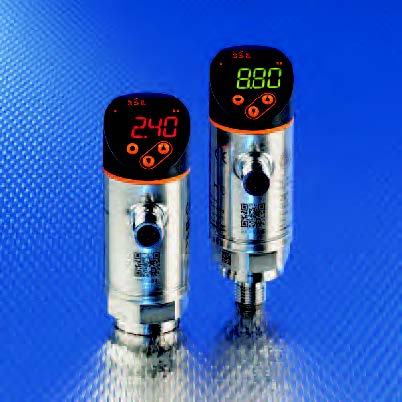

PN Pressure Switch And Transmitter

  • For hydraulic and pneumatic applications
  • Pressure ranges from vacuum up to 8700 psi
  • Integrated built-in display eliminates the need fo a reference gauge
  • Solid state sensors with stainless steel construction
  • Simple push-button set up for easy adjustment

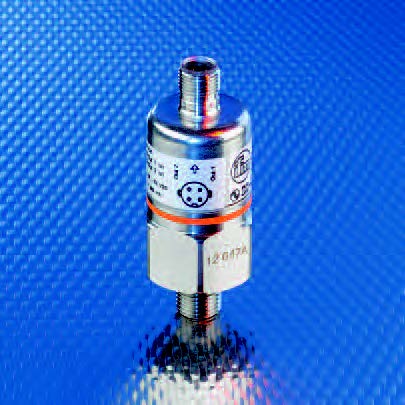

PA/PX/PT Pressure Transmitter

  • For hydraulic and pneumatic applications
  • Pressure ranges from vacuum up to 8700 PSI
  • Ceramic sensing element provides high burst / over pressure protection and exception reliability
  • Robust stainless steel housing
  • Repeatability 0.15% of full range

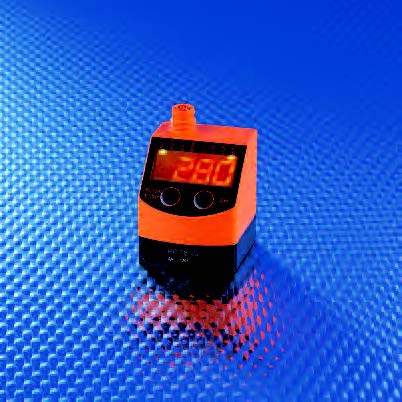

PQ Pneumatic Switch And Transmitter

  • For pneumatic applications
  • Pressure ranges from vacuum up to 145 psi
  • Push button set-up without need for a reference gauge
  • 2-color, 4-digit alpha-numeric display for visual indication of operating status
  • Flexible outputs available: dual PNP, dual NPN, analog / PNP

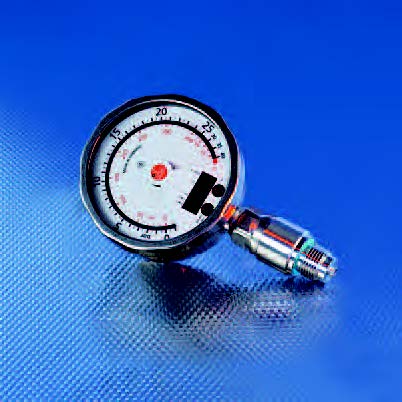

PG Pressure Switch And Transmitter

  • For hydraulic and pneumatic applications
  • Pressure ranges from vacuum up to 8700 psi
  • 3-in-1 unit: Transmitter and switch with the advantages of a gauge disply
  • Gauge display indicates the current operating pressure relative to overall range
  • Programmable display can be rotated 360 degrees
